The Edge Products have produced this set of plans so you can make your own buggy trailer.

This purchase is for a digital (PDF) copy of the trailer plans.

Designed to suit small to mid size buggies up to 450 kg this trailer is very simple to build & very economical on the pocket.

Made out of easy to find steel materials & off-the-shelf trailer components The Buggy Trailer is a simple task to construct for the novice welder.

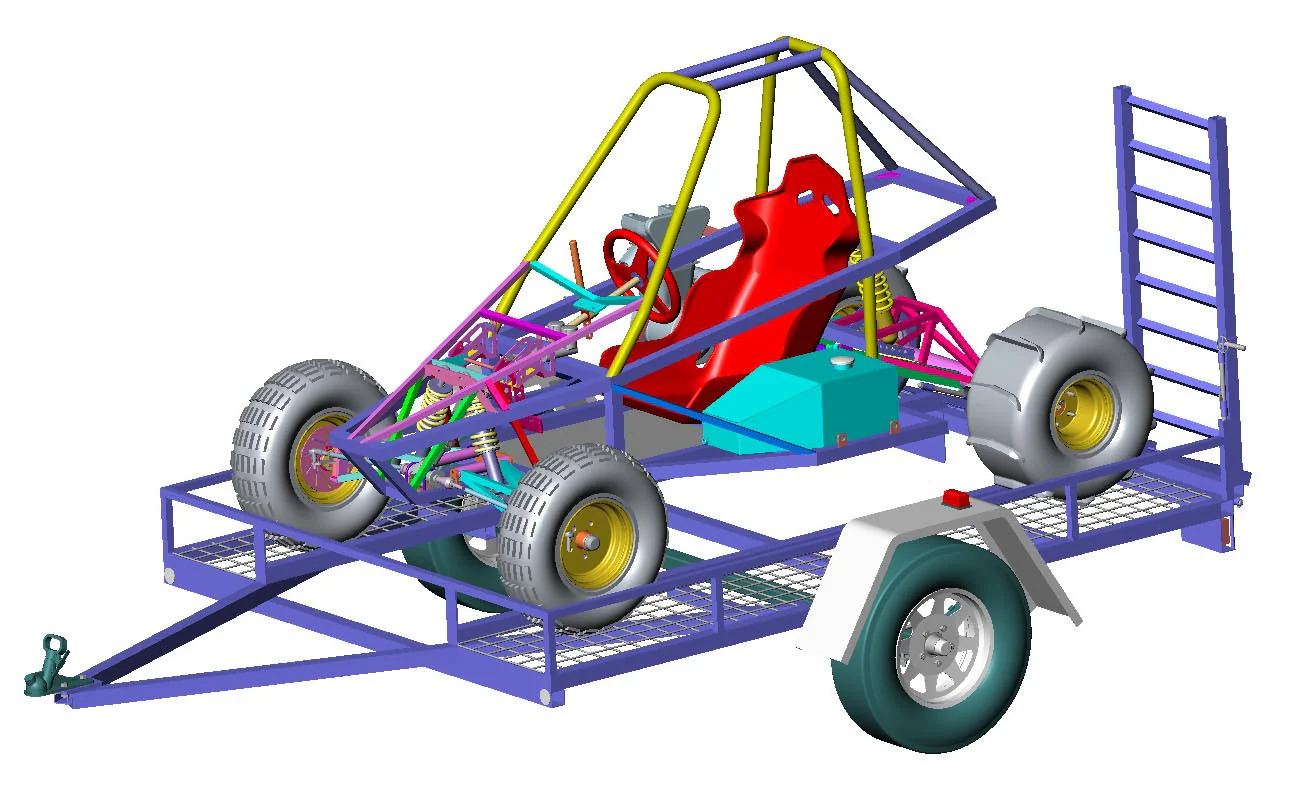

The Buggy Trailer plans have over 22 pages of detailed CAD drawings as well as 30 pages of ADR (Australian Design Rules) for small trailers.

NOTE: The Buggy Trailer is suitable for buggies up to 450kg such as the Edge Sidewinder. Larger buggies such as the Piranha, Barracuda or X2 require a larger trailer with a suitable payload capacity.

ROAD REGISTRATION: Ensure that your trailer complies with local road rules and is only towed by a vehicle with suitable towing capacity. If in doubt, contact your local government department for clarification.

Specifications

Length Overall: 3856mm
Width Overall: 2380mm
Height Overall: 777mm
Height (raised ramps): 1678mm
Ramp Length: 1190mm
Ramp Angle: 22 degrees
Deck Height: 487mm
Hitch Height: 520mm
Trailer Weight: 250kg
Wheel Size: 205-70 R14
Springs: 4 leaf, 540kg
Suspension: leaf springs, beam axle

Carrying Capacity

Length of Load: 2575mm
Width of Load: 1870mm
Approx Max Load: 450kg
